Bulletin No. PAXLC-D
Drawing No. LP0563
Released 01/10
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

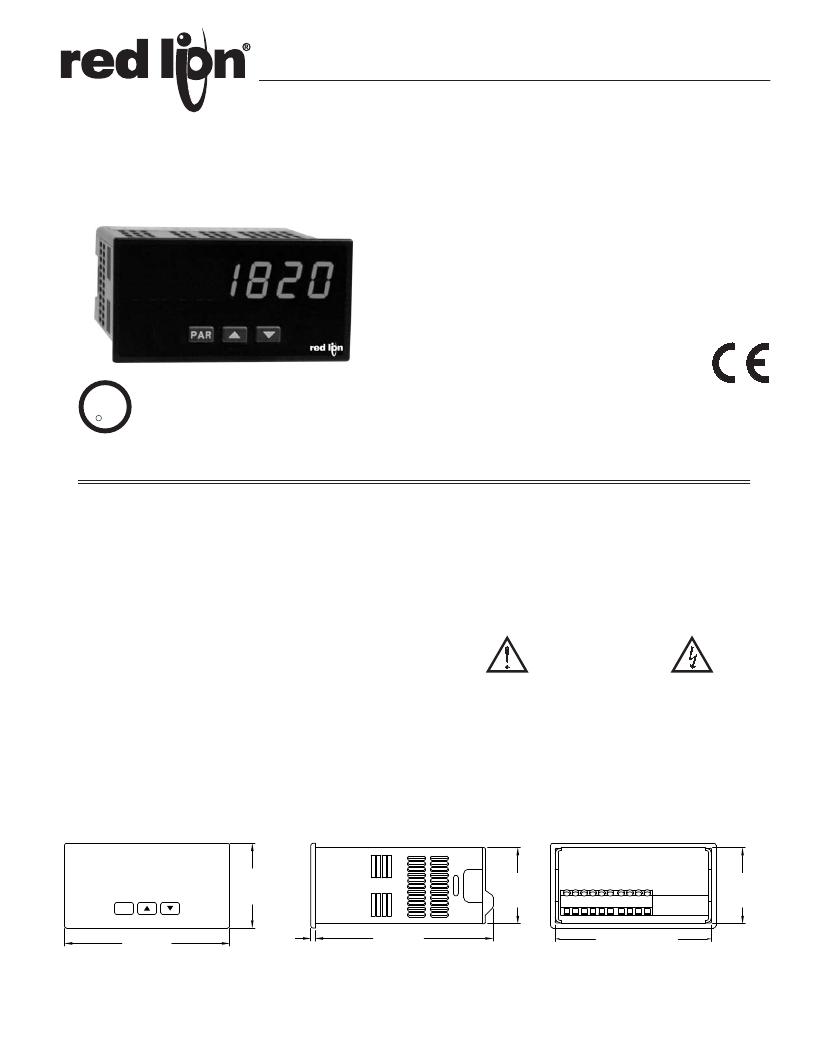

MODEL PAXLC - PAX ? LITE COUNTER
? AVAILABLE IN 6 OR 8-DIGIT VERSIONS
? 6-DIGIT, 0.56" (14.2 mm) / 8-DIGIT, 0.4" (10.1 mm) HIGH RED LED
DISPLAYS
? ACCEPTS INPUT COUNT RATES UP TO 25 KHZ
? BI-DIRECTIONAL COUNTING
? REMOTE RESET CAPABILTY
? DISPLAY STORE
? COUNT INHIBIT
? PROGRAMMABLE SCALE FACTOR
UL
C
R
US LISTED
IND. CONT. EQ.
51EB
? NEMA 4X/IP65 SEALED FRONT BEZEL
GENERAL DESCRIPTION
The PAX ? Lite Counter, Model PAXLC, is a versatile totalizing counter that
can be adapted to a wide variety of counting, measuring, and positioning
readout applications.
The unit features a programmable scale factor, front panel and remote reset,
store, inhibit, and a count rate of 25 KHz, while offering an economical solution
to any totalizing need.
The PAXLC accepts digital inputs from a variety of sources including switch
contacts, NPN-OC and TTL outputs, as well as most standard Red Lion sensors.
The input can be scaled to display any desired unit of measure by simply using
the programmable scale factor. The meter can accept bi-directional and uni-
directional signals.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
The meter is programmed through the front panel buttons and the use of DIP
switches. The Down Arrow Key will also function as a front panel display reset.
Once the front panel programming is complete, the buttons can be disabled by
a DIP switch setting.
The meter has been specifically designed for harsh industrial environments.
With a NEMA 4X/IP65 sealed bezel and extensive testing to meet CE
requirements, the meter provides a tough yet reliable application solution.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
DIMENSIONS In inches (mm)
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5" (127) W.
8.8.8.8.8.8
1.95
(49.5)
1.75
(44.5)
1
2
3
4
5
6
7
8
9 10
1.75
(44.5)
PAR
3.80
(96.5)
.10
(2.5)
4.10
(104.1)
3.60 (91.4)
1
